3204C/CF-OPT20

3204C/CF-OPT20

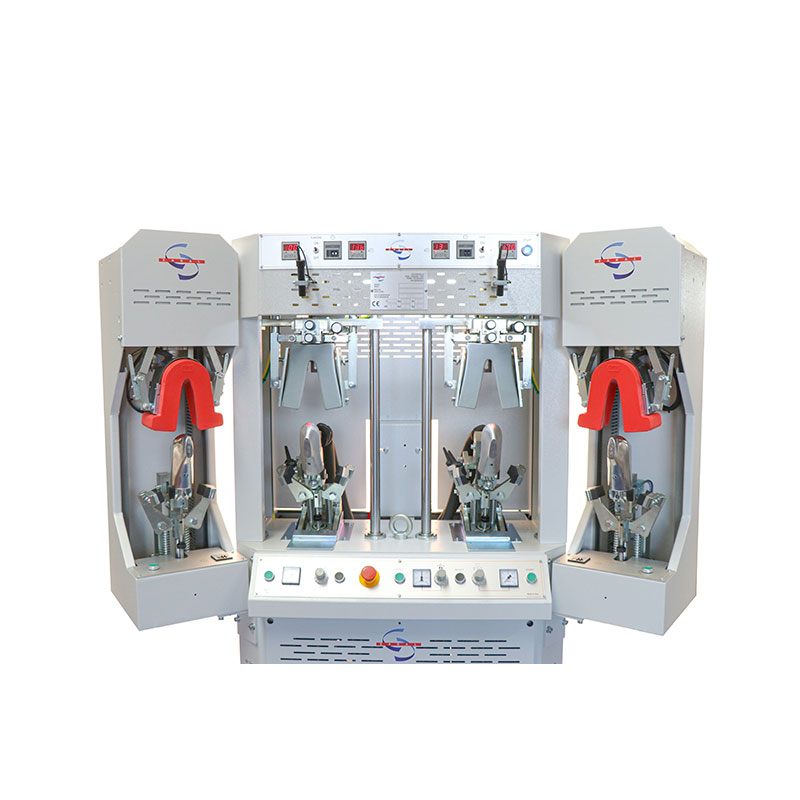

4 stations back-part moulding machine: 2 hot stations +2 cold stations, suitable for any type of upper, especially suited for thermoplastic or thermo-adhesive counters. Moulds and pads created from the customers design. Simplified pad setting for adaptability to machine mould. Spring-pressing of pads in hot stations, hydraulic in cold stations, quick change of pads.Fast and easy replacing of moulds without any dispersion of cooling liquid. Electronic control with digital temperature display. Moulds turn over on cold stations to allow a clear and ample view of the rear section of the upper and stitching. Pull-down pincers for uppers with millimetric setting. Adjustment of gripping area on the upper based on the curvature of the mould. Adjustable support reference pointer in the cold stations to allow a constant positioning of tension for the upper on the last, increasing the productivity. Pneumatic pressing suitable for materials of any thickness. Powerful liquid cooling unit. Optional included in the shown machines photo: – OPT 20G flanging of edge of heel seat with optical projector.

1
2
3204C/CF-OPT20 -

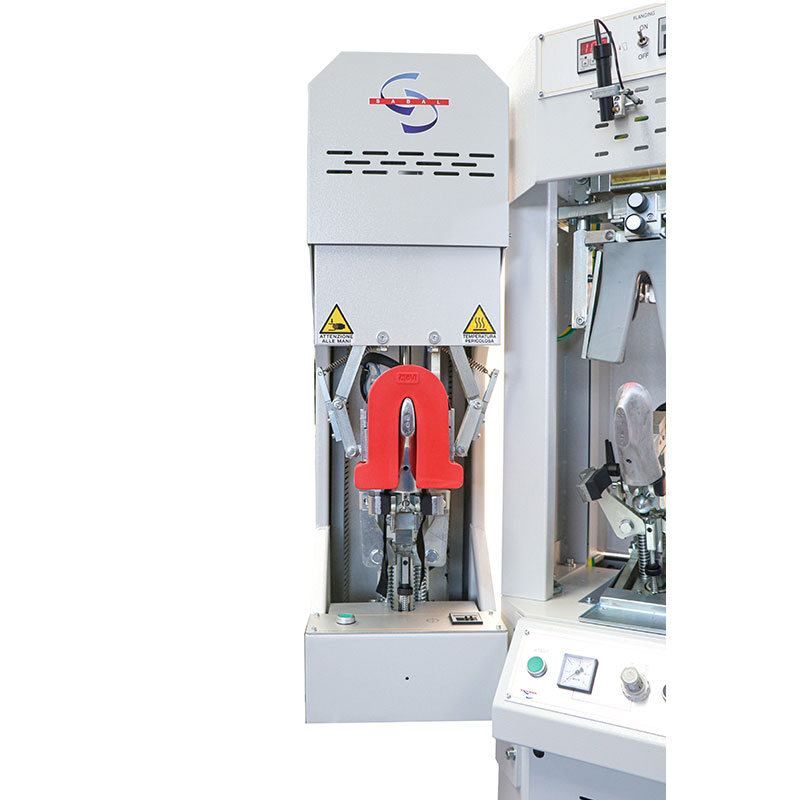

Hot station

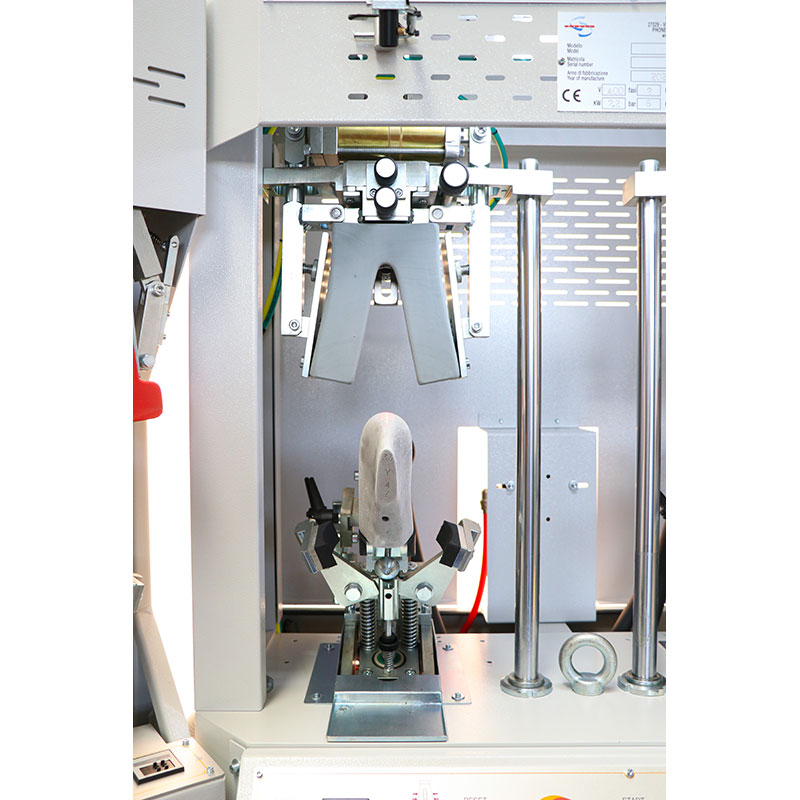

Cold station

Download

Sabal is active in the environmental field and has joined the 'green plate for leather-footwear machines' programme promoted by Assomac.

Show more

Backpart moulding machine
